CPU |
2x Intel® Ice lake-SP max. 40 Core each, 270W TDP |
|
Memory |
32x DDR4 DIMM Slots, Up to 3200MT/s |
|
PCH |
Intel®C621A |
|
NIC On Board |
2x 1GbE Port(with shared IPMI) 1x 1GbE dedicate IPMI Port |
|
Storage |
Front: 12x LFF SATA/SAS Drive slot (4 slot could be anybay,support SFF) Rear: 4x SFF SAS/SATA/Nvme Drive Slot,optional 4x LFF SATA/SAS Drive slot |
|
Controler |
14x SATA3 (6Gbps) controler on board, RAID0,1,5,10 optional SAS controler(12G), RAID0,1,10 optional RAID controler(12G) 2G cache, RAID0/1/10/5/50/6/60 |
|
Pcie slot |
Max 8x PCIe Card + 1x OCP 3.0 Riser 1: FHHLx16 + FHHLx8 + FHHLx8 Riser 2: FHFLx16 + FHFLx8 + FHHLx8 Riser 3: FHHLx8 + FHHLx8 |
|
I/O |
2x Front & 2x Rear USB 3.0 Type-A 1x PWR BTN with LED 1x Front VGA + 1x Rear VGA 1x Rear COM port(RJ45) |
|
BMC |
IPMI 2.0 management, ASPEED AST2500 BMC |
|
PSU |
1+1 Redundant 185mm CRPS 800W/1300W/1600W(90 V~264 V AC or 200 V ~ 300 V DC) |
|
Temperature |
5~35℃ |
|
Dimensions |
87mm (H) x 436mm (W) x 815mm (D) |
Server

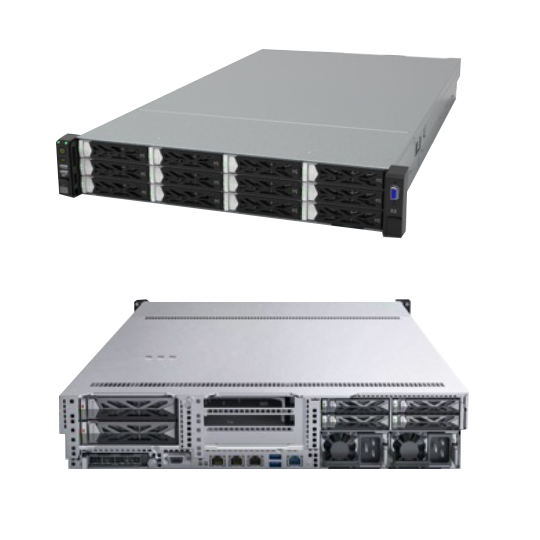

Intel-2U-R5215 Gen12
R5215 G12 is the flagship server with 2 sockets based on Xeon Ice-lake processors of Intel Whitley platform. It can support 32 DDR4 DIMMs and BPS of up to 3200MT/s. 8 channels’ data reading can improve the application property and business stability. Besides, it can support 16 pcs 3.5” HDDs and 4 pcs 2.5” SSDs, which is flexibly configured for customers’ business. 8 PCIe 4.0 slots can meet the requirement of GPU card, RAID card and NICs. High scalability and easy management makes it applicable to cloud computing, high performance computing and HDFS.
