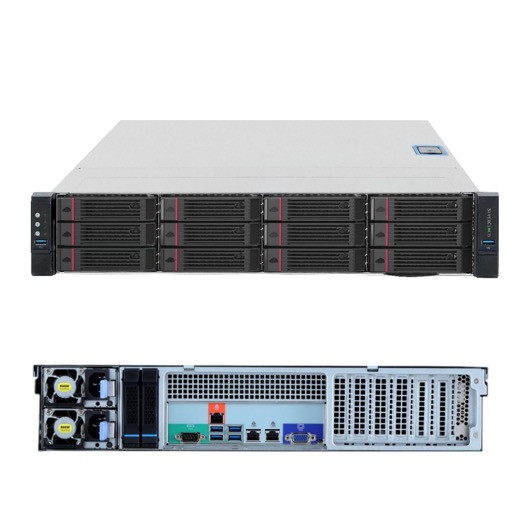

Intel-2U-R5210 Gen12

R5210 G12 is a 2U rackmount server based on scalable Intel Xeon processors of third generation, supporting 6 PCIe4.0 devices and 8/12/24 pcs HDDs. It is applicable for Internet, information security, ISV, education and government business. We can provide reliable, stable and flexible solutions based on customers’ requirements.

Our Product

Technical Specifications

CPU

2x Intel® Ice lake-SP max. 40 Core each, 270W TDP.

Memory

18x DDR4 DIMM Slots, Up to 3200MT/s

PCH

Intel®C621A

NIC On Board

2x 1GbE Port

1x 1GbE dedicate IPMI Port

Storage

Front:  12x or 8x LFF SATA/SAS Drive slot,or 24x SFF SATA/SAS Drive slot

Rear: 2x SFF SAS/SATA/Nvme Drive Slot

Internal:1x M.2 NVMe SSD

Controler

10x SATA3 (6Gbps)  controler on board,RAID0,1,5,10

optional SAS  controler(12G), RAID0,1,10,

optional RAID controler(12G) 2G  cache, RAID0/1/10/5/50/6/60

Pcie slot

Max  6x PCIe Gen 4 slot,include 4x PCIe Gen4 x16 and 2x PCIe Gen4 x8 slot

IO

2x Front & 4x Rear USB 3.0

1x PWR BTN with LED

1x Rear VGA

1x Rear COM port(RJ45)

BMC

IPMI 2.0 management, ASPEED AST2500 BMC

PSU

1+1 Redundant 185mm CRPS

550W/800W

Temperature

5~35℃

Dimensions

87mm (H) x 438mm (W) x 660mm (D)
